Door Closer Aluminium Alloy Automatic

This is our hot-sale product -- Door closer aluminum alloy automatic type.
We have been exported to many markets, such as Europe, American, Russia etc. We are expecting become your long team partner in China.

Send Inquiry

Description

This is our hot-sale product -- Door closer aluminum alloy automatic type.

We have been exported to many markets, such as Europe, American, Russia etc. We are expecting become your long team partner in China.

Brief Introduction

The Door Closer Aluminium Alloy Automatic is a high-performance hydraulic device installed at the top of doors, designed to automatically close doors after opening. By utilizing controlled compression and release mechanisms, it not only ensures automatic door closing but also protects the door structure by enabling smooth and consistent operation.

This Aluminium Alloy Automatic Door Closer has become an essential component in modern smart building management, especially in commercial and public buildings, helping prevent fire spread while maintaining proper ventilation.

Product Introduction

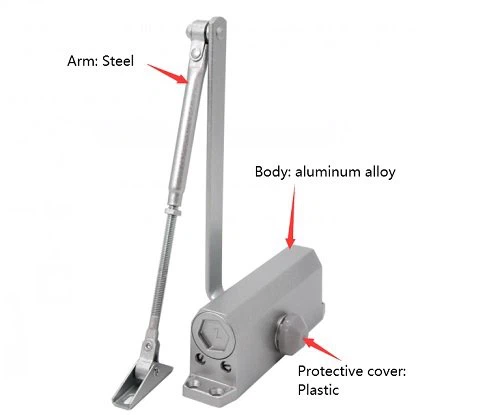

Premium Aluminium Alloy Construction

Made from durable aluminium alloy with multiple surface treatments, available in silver, white, or black finishes. This ensures long-term durability and resistance to wear, even after 200,000 cycles of opening and closing.

Wide Application Compatibility

Suitable for various door types, including wooden doors, steel doors, aluminium doors, and fire-rated doors. Works effectively for doors of different widths, weights, and operating temperatures.

Smart Automatic Functionality

Provides both automatic and hold-open options. Doors can open and close intelligently without manual operation, making it ideal for commercial, residential, and high-traffic public spaces such as hotels, shopping centers, and office buildings.

Enhanced Safety and Door Protection

By controlling door closing speed and preventing slamming, the Automatic Door Closer Aluminium prolongs the life of door components and minimizes noise, improving overall user comfort and safety.

Reliable Warranty

Comes with a 2-year warranty, assuring buyers of its quality and durability.

Product Parameter

Model	CY-051F/CY-061F/CY-071F/CY-082
Material	Aluminum alloy
Color	Silver, Black, White
Door width	500-800mm, 600-1000mm, 600-1100mm, ≤1300mm
Door weight	25-45kg, 40-65kg, 60-80kg, 80-110kg
Installation size	13219mm, 16219mm, 18819mm, 23019mm

Product and company advantages

□ Product Advantage

1. Designed by our own R&D team (satisfy customers' diversified requirements) All products in our factory are designed by our own engineer&design department.

And we can make products according to your design or special requirements (color, design, logo, capacity etc).

2. Produced by ourselves (control the cost and quality)

We are manufacturer. Produce products by our own factory saves some money.

The final beneficiary is the customers. We do all process ourselves, from modeling to painting and packing. From this, we saved some unnecessary costs.

Good quality is our culture. We have pretty strict requirements for quality control.

3. Delivery in time (protect customer's benefit)

Deliver products on time. We produce products according to the lead time, in this way, we can protect customers benefit.

4. Good pre-sale & after-sale service (win customers' trust)

Our service team have strict and closely focus on all orders. Quick quotation and pre-sample before order. All details will be confirmed and double checked before production. Good after-sale service also earns good reputation from customers (no matter in China or other countries)

□ Quality Control

Our products are produced under the ISO9002 standard. Each process of the manufacture strictly enforces the ISO9002 quality standard. And all products have got the National CCC

1. After confirming the order, we will purchase the materials and molding it. Then to check whether it's good or not to be used.

2. After making sure the main body shell is up to the quality standard. We will remove the scratch and drilling holes on it.

3. After that, we will check whether it's smooth and whether the holes are qualified. Then, we start to polish the surface to make sure it's smooth and suitable for painting.

4. Dust and small aluminium pieces will be cleaned.

5. After making sure all above, we will start assembling all the accessories. During this process, unqualified products will be left and remade.

6. Then, we put oil inside the main body. During this process, the unqualified products on sealing will be left and Remake.

7. After oil injection, products will be tested on speed and adjust the speed. Unqualified items will be left and remake.

8. Painting the color customer required, then, print logo and pick up the unqualified items.

9. Packing with poly bags for arms and main body. 1pcs/ box and 10pcs/ carton.

10. Before delivery, our quality checking manager will do sampling check.

Quality is the first concern, the three times quality checking make sure the stable quality. Although we have good reputation from customer, we will also make progress day by day to control and make better quality. All for all, with good and stable quality, we will establish the long-term cooperation with customers based on mutual benefit.

Product application

The Door Closer Aluminium Alloy Automatic is perfect for use in:
